Line color for TMA Class E D A

VFRnav Support
1

Hello,

Could you explain how the color of TMAs is chosen according to their class E, D or A?

I’m having an issue with the TMA Paris 1 3500 FL115 which is in red (A) whereas it should be in blue (E or D).

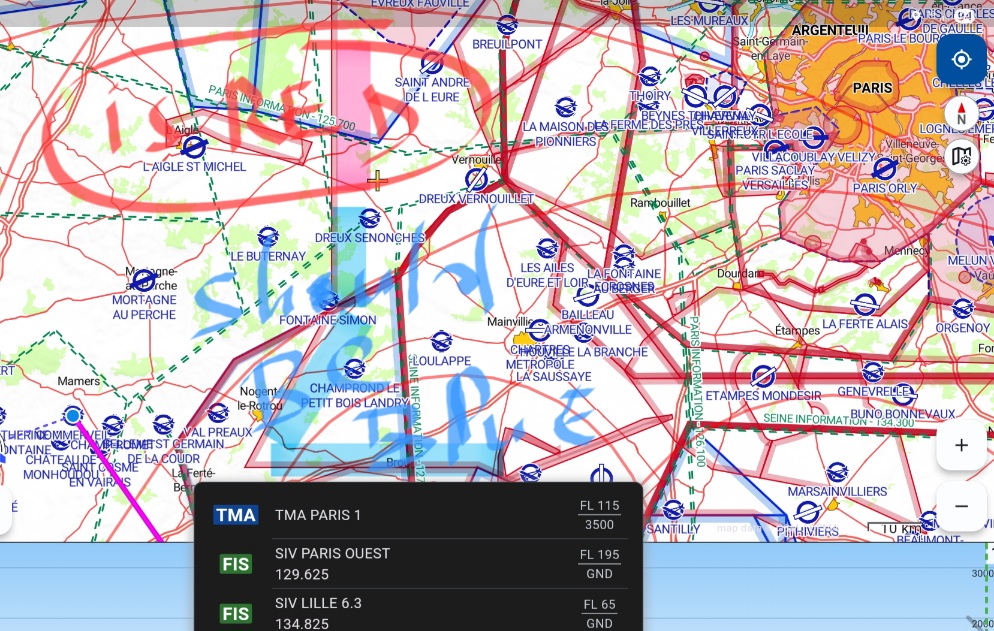

In the attached screenshot, to the west of Paris, see the yellow cross for the click position, and the expected blue color.

Have a good flight,

Daniel

Screenshot_20260407_102957_VFRnav(2)
Screenshot_20260407_102957_VFRnav(2)994×631 329 KB

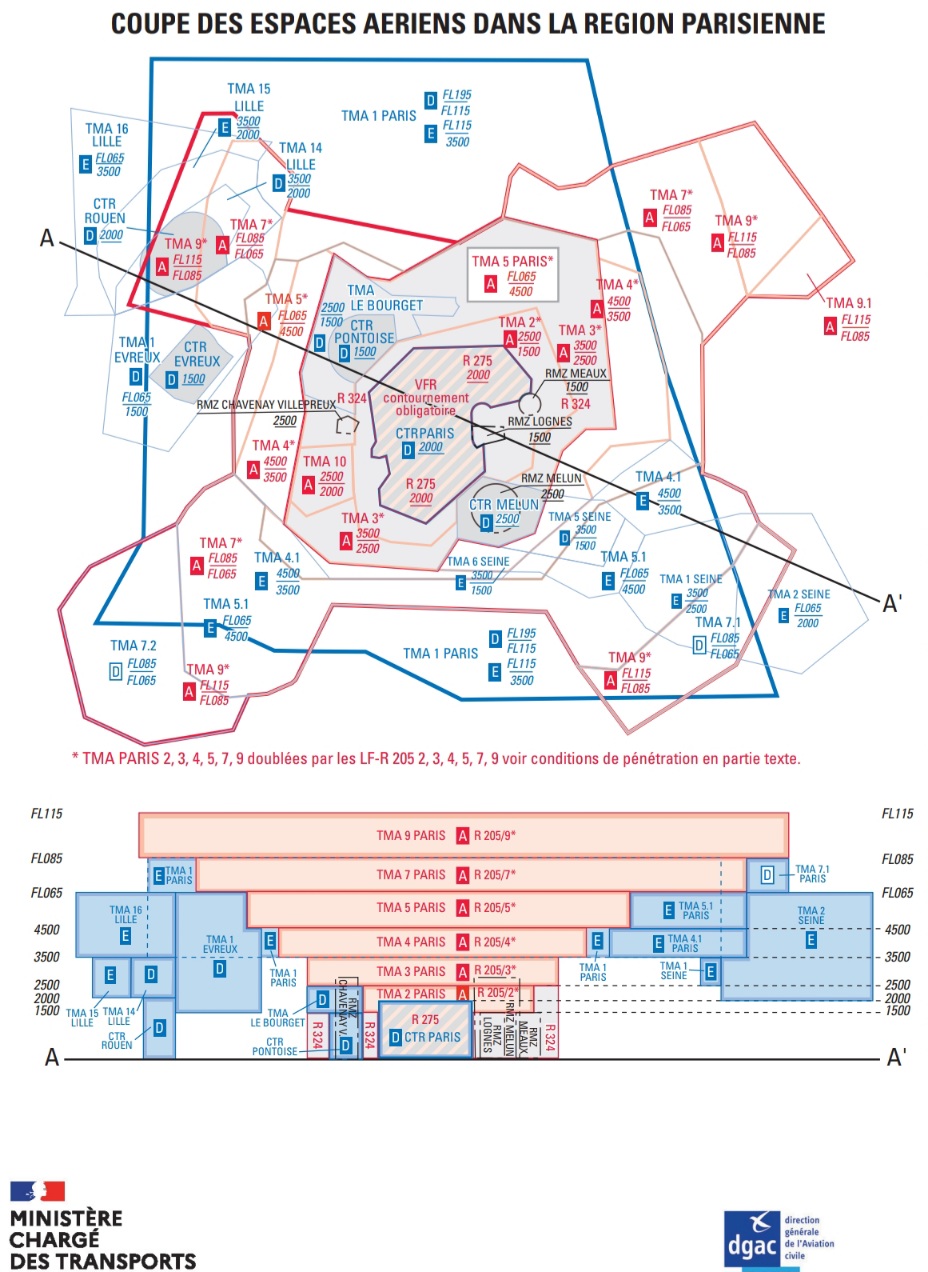

Screenshot_20260407_111529_Drive(1)
Screenshot_20260407_111529_Drive(1)928×1272 289 KB

2

Hello Daniel,

Thank you very much for the heads-up. I was able to reproduce the incorrect display of the airspace you showed.

This will be corrected in the upcoming map update :flexed_biceps: :+1:

Pilot’s regards
Hermann
